Description

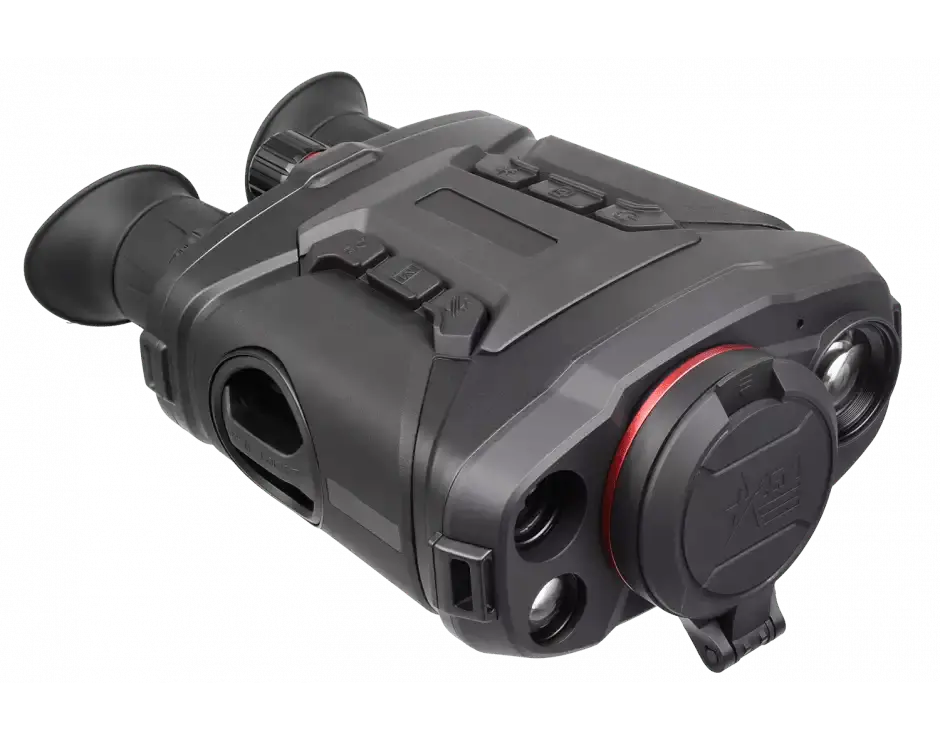

AGM Global Vision Voyage LRF TB50-384

The AGM Voyage TB50-384 Fusion Thermal & Digital Day/Night Vision binoculars is some of the most technologically advanced and feature-packed optics in the world. The primary engine behind this binocular lies within the main thermal viewing channel, with its incredible new 12 micron 384×288 thermal detector. This new AGM thermal sensor possesses an industry-leading sensitivity rating of sub-20mK (millikelvin). This sensor from AGM will ensure that not only are human-sized heat signatures detectable at up to 1.6 miles (2600m) but also that foliage and other background imagery will be crisp and detailed in closer distances/ranges. Unlike other thermal binoculars on the market, the Voyage also come outfitted with a digital night vision channel as well, which is great for aiding in the recognition of targets after the thermal channel has detected a potential target. The built-in 1000m Laser Rangefinder simply takes the Voyage to another level, and this is without even mentioning its 64GB of internal memory and Wi-Fi compatibility.

The potential uses with the Voyage fusion binoculars seem almost as endless as its features, which include, but are not limited to: high-sensitivity sub-20mK thermal detector, 50mm Germanium lens with a 0.9 aperture, 2560×1440 ultra-low light CMOS sensor, various viewing modes, including fusion imaging and multiple color palettes, 5.5X base magnification with 16X digital zoom, picture-in-picture mode, built-in laser rangefinder, GPS module, inclination sensor,  Digital Detail Enhancement (DDE), up to 8 hours of battery life on three removable, rechargeable 18650 batteries, USB Type-C port for external power capabilities, IP67 waterproof rating, included hard carrying case, neck strap and of course AGM’s 5 Year Transferable Warranty!

FEATURES:

• Dual-spectrum image fusion and object highlight (detail enhancement and target recognition)
• Selection of thermal view channel, visible light channel, or both combined
• Thermal resolution: 384×288
• Optical resolution: 2560×1440
• NETD less than 20 mK (25°C, F#=1.0)
• Digital Detail Enhancement (DDE)
• Dynamic Noise Reduction (3D DNR)
• Adaptive Automatic Gain Control (AGC)
• Ultra-low illumination (optical channel), B/W: 0.001 lux @ (F1.0 , AGC On)
• Video recording, replay, picture snapshot, and search (capable to review the event on the device)
• Wi-Fi hotspot
• Eye-safe laser rangefinder (up to 1,000 m distance detection with measuring accuracy 1 m)
• GPS module
• Digital magnetic compass
• Inclination sensor
• Proximity sensor to save power
• Up to 8 hours of continuous operation
• Waterproof, IP67
• Limited 5-Year Warranty

SPECIFICATIONS:

• Magnification:  5.5× – 88×

• Interpupillary Distance:  60 mm to 70 mm

• Digital Zoom:  1×, 2×, 4×, 8×, 16×



• Detection Range:  2,600 m/yd (6’ object)*

• Flat Field Correction (FFC):  905 nm (Class 1)

• Palettes:  Optical, White Hot Thermal, Black Hot Thermal, Red Hot Thermal, Image Fusion

• Diopter Adjustment:  -5 to +3 dpt

• Battery Type:   Three 18650 batteries

• Image Sensor:  Vanadium Oxide Uncooled Focal Plane Array

• Resolution:  384×288

• Pixel Pitch:  12 μm

• Response waveband:  8 μm to 14 μm

• NETD:  Less than 20 mK (25°C, F#=1.0)

• Field of View:  5.3° × 4.0°

• Aperture:  F0.9

• Lens (Focal Length):  Less than 20 mK (25°C, F#=1.0)

• Monitor:  0.39-inch, OLED, 1024×768

• Storage:  Built-in memory module (64 GB)

• Snapshot:  JPEG, 1600×1200

• Battery Operating Time:  Up to 8 hours

• Battery Capacity Display:  Yes

• Protection level:  IP67

• Mounting:  1/4”-20 UNC

• Cable Output:  USB Type-C port

• Accessories (Supplied):  Battery Charger, Power Cable, Lens Cloth, Two Wrist Straps, Neck Strap, Six 18650 Batteries, Power Adapter, User Manual, Carrying Case

• Dimension (LxWxH):  217 × 155 × 87 mm (8.5 × 6.1 × 3.5 in)

• Weight:  1.12 kg ( 2.5 lb)

• Storage temperature range:  -40°C to 70°C (-40°F to 158°F)

• Picture In Picture Mode (PIP):  Yes

• Video Recording:  MP4, 1600×1200



• Measuring Distance of Laser Rangefinder:  Max. 1,000 m

• Laser Wavelength:  905 nm (Class 1)

• Eye relief:   15 mm

• External power supply:  DC 5V/2A, Max.10W, Type-C port
